Corrugating Rolls

Home
Corrugating Rolls

Global Leading
Corrugating Roll Solutions

With 30+ years of commitment to corrugating roll technology development, from producing China’s first tungsten carbide corrugating roll in 2002 to creating the unique triple-arc flute structure and peripheral heating technology, RMM continues to lead industry trend.

Our rich database of standard drawings from corrugator suppliers, combined with extensive worldwide experience, enables us to provide optimal solutions meeting 90% of global customization needs.

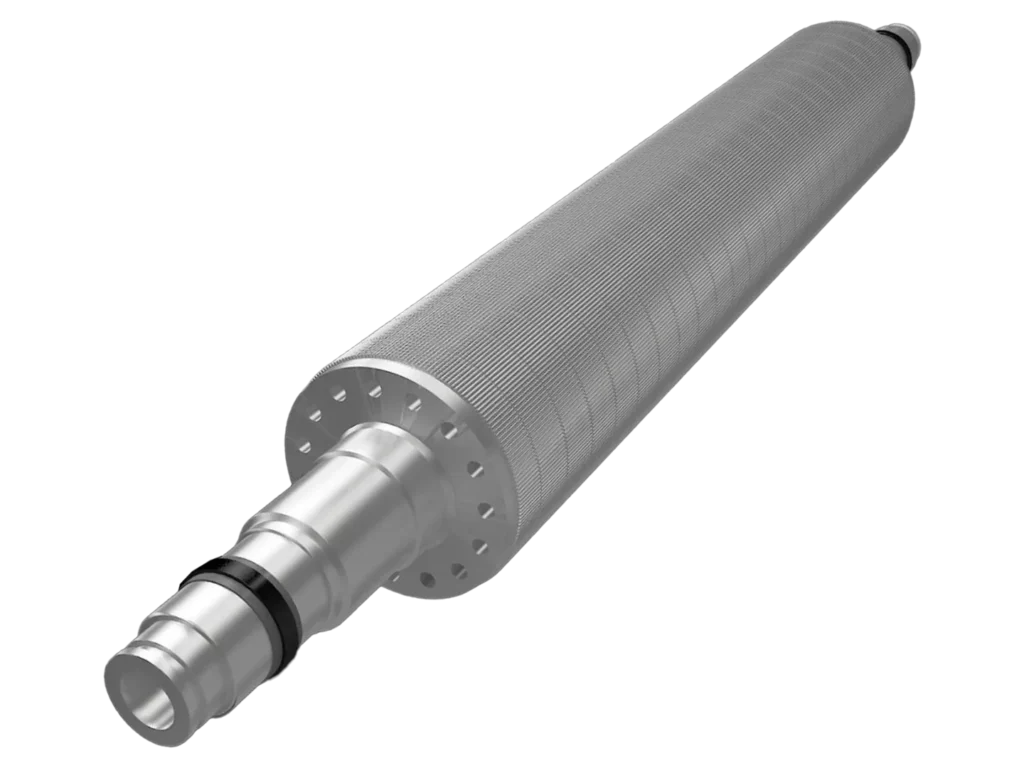

Tungsten Carbide Corrugating RollsMaximizing Production Potential

RMM’s tungsten carbide corrugating rolls outperform standard chrome-coated rolls and are manufactured using premium 50CrMo alloy steel and advanced tungsten carbide coating technology. They can be refurbished 3-4 times and offer excellent wear resistance, preventing tooth deformation. RMM’s tungsten carbide corrugating rolls service life is 3-5 times longer than chrome-plated corrugating rolls.

Superior performance in high-speed production lines
Better handling of low-grammage paper production
Consistent and Reliable Product Quality
Significantly Reduced Material Waste
Less Downtime and Maintenance Costs
Maximum Width of Up to 3.6m for Increased Capacity

Micro Flute Tungsten RollsPrecision Meets Performance

To break the prejudice that micro flute corrugating rolls can only be chrome-plated, RMM’s micro flute corrugating rolls with a tungsten carbide coating offer outstanding wear resistance. Featuring high-precision surface treatment with a roughness similar to chrome coating, these rolls significantly reduce the risk of paper damage and provide extended lifespan.

Minimized Paper Stretching and Warping
Reduced Raw Material Waste During Production
300 sets of E flute tungsten coating corrugating rolls yearly
Stable Production Quality for F, G, N, and O-Flute Boards
Enhanced Flatness and Improved Print Performance

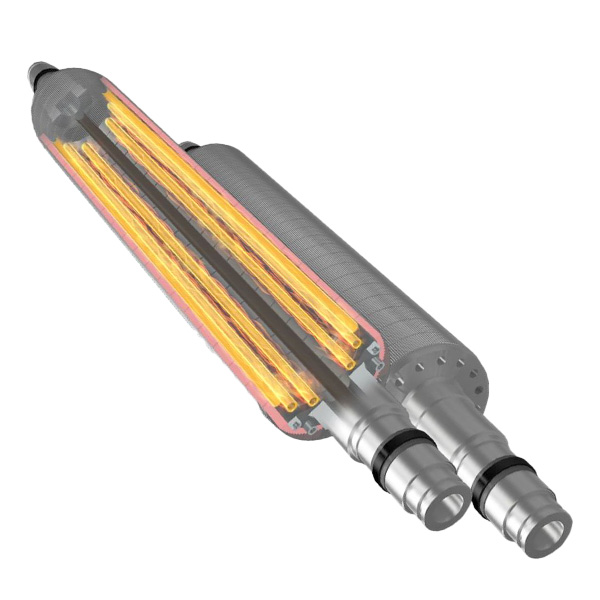

Peripheral Heating Corrugating RollsRevolutionizing Efficiency and Quality in Cardboard Production

RMM’s exclusive peripheral heating technology patent features an innovative axial channel heating design, overcoming the limitations of traditional heating methods. This significantly enhances thermal conductivity, enabling rapid heating in just 5 minutes and reducing the banana effect caused by uneven heating. This innovation significantly reduces paper waste and various other wastes by minimizing downtime in the corrugated cardboard production process.

More Uniform Temperature Distribution
Supports High-Speed Production at 450 m/min
Accommodates Full Range of Base Papers from 50 to 250 g/m²
Effectively Solves low-grammage Paper Breakage Issues
Resolves Adhesion Issues on Wide-Format Production Sides
Reduces Energy Consumption and Exhaust Emissions
Significantly Enhances Cardboard Quality with Superior Corrugation Formation

Unique Production Methods, Exceptional Performance

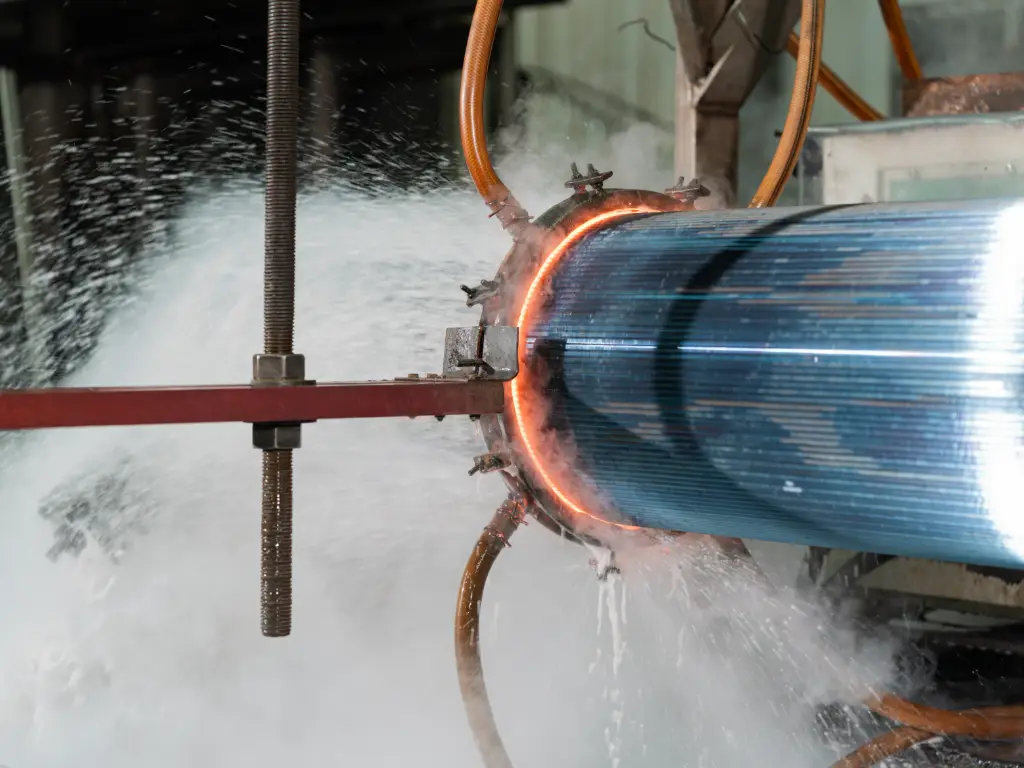

Advanced Hardening Processes

RMM’s proprietary triple heat treatment method, which includes Nitriding, Quenching, and Cryogenic Treatment, offers enhanced stability for corrugating rolls. This results in higher-quality, flatter corrugated boards that are better suited for printing.

Low thermal expansion coefficient leading to minimal deformation
More uniform temperature distribution during operation
Enhanced hardness uniformity across the corrugating rolls
Effective removal of processing stress
Superior performance with both high-speed and low-grammage paper grades

Innovative Tri-Arc Structure

RMM’s innovative tri-arc structure delivers exceptional performance with faster operating speeds and extended service life. This advanced design effectively reduces resonance and operational noise while expertly handling both heavy and low-grammage papers, minimizing breaks and optimizing energy consumption.

Maximum speed of 450 m/min, 28% faster than standard rolls
Accommodates paper grammage from 50 to 220 g/m² for varied production needs
Lifespan up to 35-50 million meters, up to 130 million meters maximum, 40-100% longer than standard corrugated rollers
Reduces breakage in low-grammage paper production, improving efficiency and saving wood resources and energy

Leading-Edge Equipment for Manufacturing Excellence

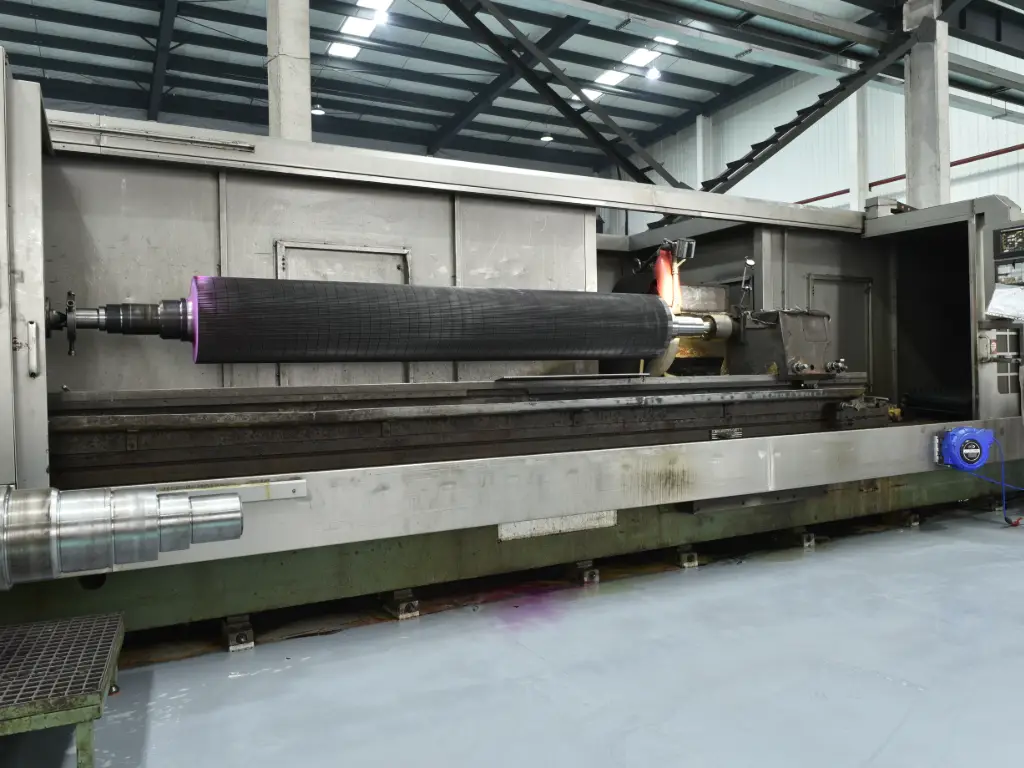

Ultra-wide CNC Cylindrical Grinding Machine

Maximum corrugating roll width reaches 3.6 meters, exceeding industry standard

The largest grinder in the industry, leading in wide-span machining capacity
Perfectly aligned with the industry’s trend towards larger-scale development

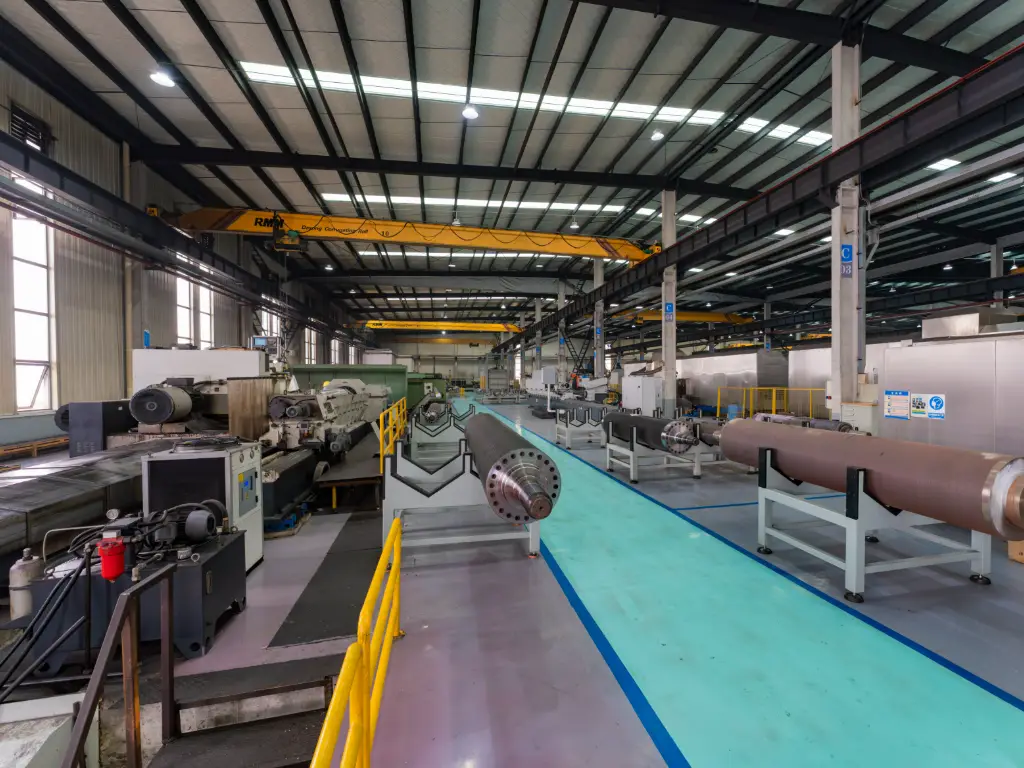

25 Specialized CNC Grinders

Specifically Designed for Corrugating Rolls
Industry-leading scale of specialized grinders

Fully CNC-operated to eliminate human error
Sufficient production capacity to ensure order fulfillment

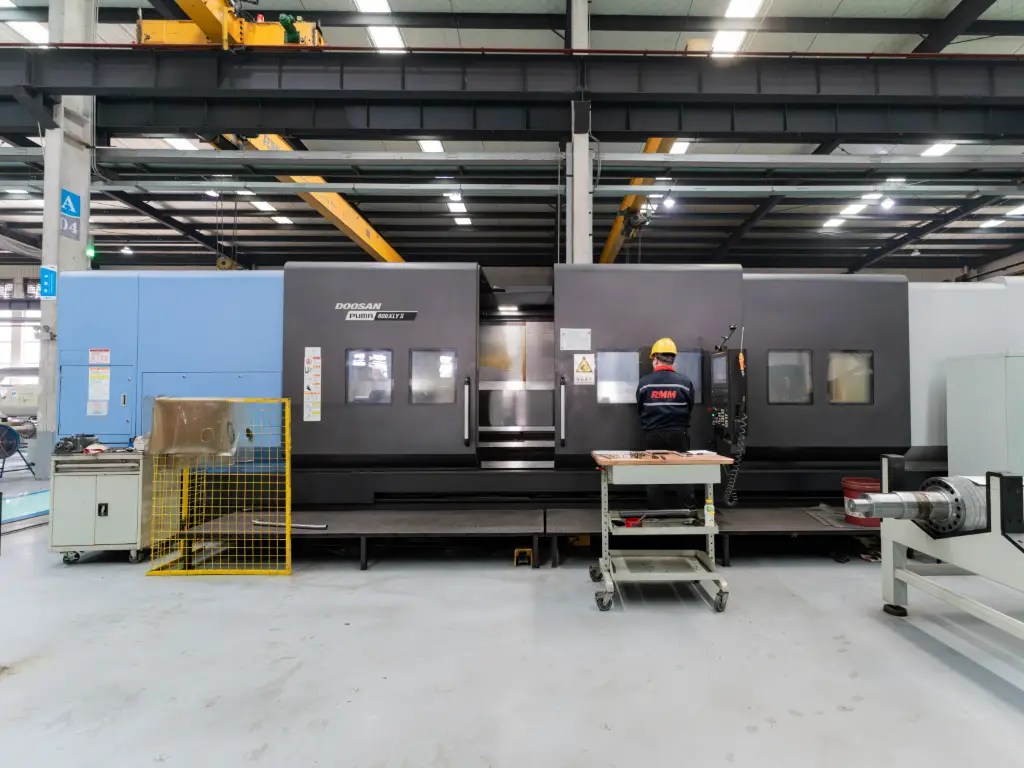

Fully Imported Automatic Turning and Milling Centers

Able to complete shaft ends, keyways, and threading in a single setup
Machining precision controlled within 0.05 mm
Enhances processing efficiency and ensures product quality

Free TFP Service Optimization

Optimize Perfect Every

Flute Roll

RMM’s independently developed CMATLAB5.0 software can simulate and optimize stress changes during the corrugating process. It offers precise flute profile optimization solutions to enhance board quality and reduce production costs.

Extensive database of drawings and an industry-leading number of flute profiles
Long-term collaboration experience with renowned corrugated machinery manufacturers,ensuring excellent product compatibility
Tailor-made Flute Profile service to meet different FCT, ECT, and TUR requirements
A, B, C, K, E, F, G, O, N, and unique W&V flute types to meet various application needs
Using high-precision profilometers to measure tooth profiles ensures that the produced profiles perfectly match the design specifications
With rich global experience, RMM offers flute customization advice that better align with local market demands for corrugated cardboard

RMM: The Trusted Partner for Leading Brands in Corrugating Solutions

Guided by the principle of “No development, No innovation, No future,” RMM has been dedicated to advancing China’s corrugated roll industry since 1994, striving to offer cost-effective Chinese-made products globally.

Vast Design Database

With a database of over 5,000 corrugated roll drawings and extensive design experience, RMM covers all types of corrugated flute, efficiently meeting diverse client-specific requirements.

Advanced R&D Expertise

With 80+ patents, RMM leads in innovation. RMM developed peripheral heating retrofit technology and tri-arc structures to boost production efficiency and reduce resource waste.

Advanced Testing Assurance

Comprehensive testing with advanced equipment ensures high quality and reliable performance of corrugating rolls.

Advanced Manufacturing Techniques

RMM’s proprietary cryogenic treatment process significantly enhances the uniformity and stability of corrugating roll hardness, extending service lifespan.

One-Stop Service Solution

RMM offers a full range of services, including flute design and component pre-installation, to meet needs and boost efficiency while reducing costs.

Why Choose RMM?

Comprehensive Corrugating Roll Solutions

With over 30 years of experience, RMM is your reliable partner for lasting corrugating solutions. We offer full warranties, global 24/7 support, and efficient delivery options, ensuring high performance and customer satisfaction worldwide.

50000㎡ Factory

RMM operates the world's pioneering factory with a 50,000 square meter facility and a capacity to produce 3,000 pairs annually.

Trusted Certifications

RMM holds CE, DOSH, ASME, ISO 9001, ISO 14001, and ISO 45001 certifications, ensuring top quality and safety standards.

Supply Chain Assurance

RMM collaborates with suppliers to maintain stock and ensure prompt deliveries through a stable supply chain.

Global Support and 24/7 Service

RMM's service team provides 24/7 online support and international service points for reliable assistance.

Efficient Packaging Protection

RMM uses anti-rust oil, plastic film, and fumigated wooden crates for roll protection during transport.

Maintenance Guide Support

RMM provides detailed maintenance documentation for each roll, helping clients extend its service life.

We Drive You to Advanced Manufacturing with Innovative Patents

Our commitment to relentless innovation is showcased through our patents, empowering you with cutting-edge technology in corrugating roll manufacturing.

Common Questions and Answers

What are the advantages of tungsten carbide material?

RMM’s tungsten carbide rolls last 3–5 times longer than chrome-plated rolls, offering superior wear resistance and reducing maintenance costs. They can be reground at least three times, further extending their service life and performance.

Do you offer customized flute profiles?

Yes, we provide customized flute profiles tailored to your production needs，named on TFP Service. We design flute comparison including BCT, FCT, ECT to meet your requirements for better performance cardboard.

Is technical guidance included with purchase?

Yes, we offer professional technical support and guidance with every purchase. Before contract, our sales will follow your needs to give special TFP service along with drawings confirmation; after sales, every single package will have our maintenance instruction to guide our customers to use corrugating rolls well.

Do you provide emergency replacement services?

Yes. 48-hour global delivery for urgent replacements. Backed by over 30 years of experience and a comprehensive database of single facer models, we maintain customized raw material stock for your rolls — ensuring the fastest possible delivery in any emergency.
