Professional Flute Profile Database

RMM’s flute profile database is a leader in the industry, offering a wide range of options to meet diverse production needs. With an extensive drawing database, our corrugating rolls offer high compatibility and flexibility, making them suitable for a variety of application scenarios.

Customized Flute Profile Solutions

RMM offers a wide range of flute profiles to meet various corrugated board production needs. Flute profiles are the corrugated shapes in paperboard that determine its strength, flexibility, and printability. They enhance packaging durability, provide cushioning, and create a smooth surface for printing. Selecting the right profile is essential to ensure optimal performance for different applications.

Flute Profile List

RMM has over 30 years of expertise in corrugating roll flute manufacturing, with more than 20,000 flute designs optimized for various corrugating applications to ensure maximum performance. Additionally, RMM has pioneered the V and W flute profiles, offering greater paper savings and keeping its position at the forefront of the industry.

Flute Type	H	Z/300
K	5.0～15.0	12～32
A	4.0～4.9	32.8～36.3
C	3.3～3.9	37.2～41.5
V	3.0～3.2	42.2～45
B	2.1～2.9	46～58
W	1.7～2.05	54.61~ 67.2
E	1.0～1.6	68～92
F	0.6 ~ 0.9	115 ~145
G	0.5 ~0.6	140 ~170
N	0.4 ~0.5	160 ~180
O	0.3	264 ~268

Flute Profile Applications

Heavy-Duty Packaging

K Flute is ideal for applications requiring high strength, such as shipping large or heavy products.

Retail Displays

V and B flute profiles offer a smooth, clean surface perfect for retail packaging and displays, often used in marketing materials.

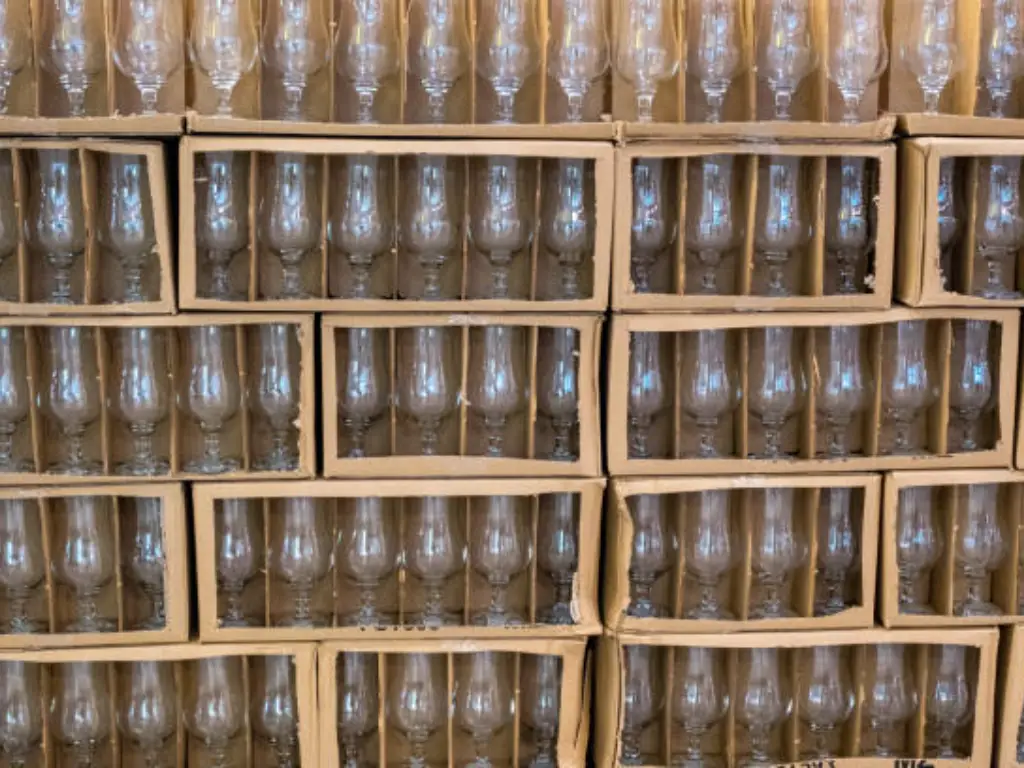

Protective Packaging

A and C flute profiles deliver superior cushioning, making them perfect for packaging fragile items.

High-Quality Print

F, G, and N micro-flute profiles ensure smooth surfaces, perfect for sharp, clear printing on high-end packaging like cosmetics and electronics.

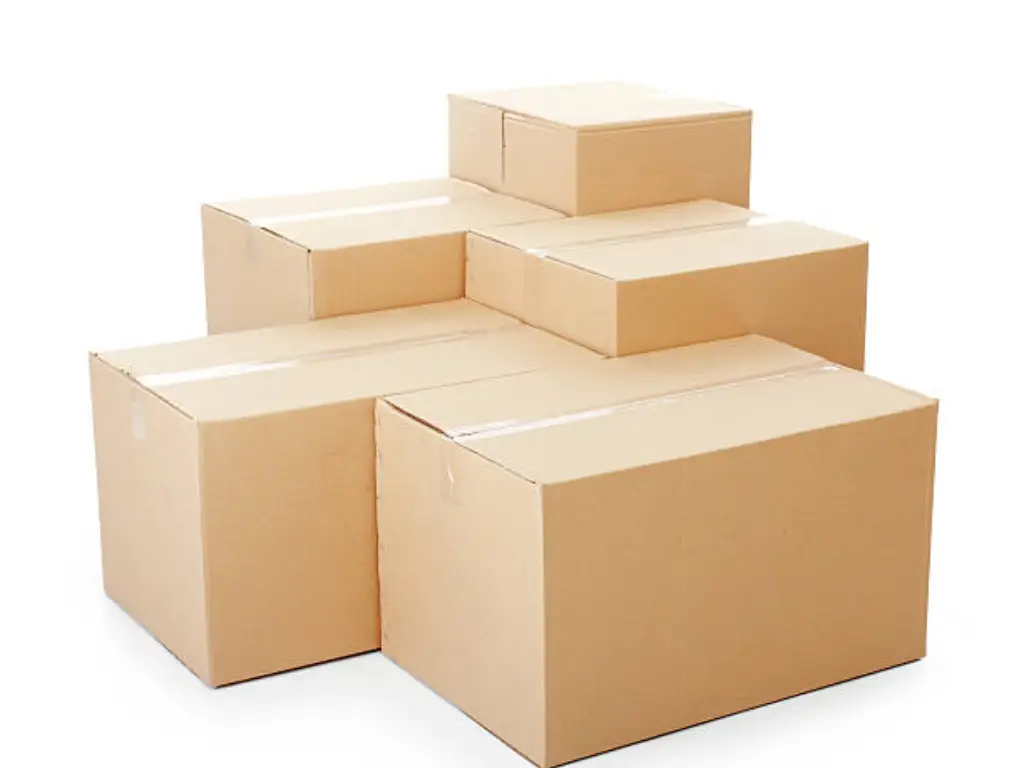

Cost-Effective Solutions

W and E flute profiles provide efficient, budget-friendly options for lightweight and thin-walled packaging, commonly used in food packaging and small consumer goods.

RMM: The Trusted Partner for Leading Brands in Corrugating Solutions

Guided by the principle of “No development, No innovation, No future,” RMM has been dedicated to advancing China’s corrugated roll industry since 1994, striving to offer cost-effective Chinese-made products globally.

Vast Design Database

With a database of over 5,000 corrugated roll drawings and extensive design experience, RMM covers all types of corrugated flute, efficiently meeting diverse client-specific requirements.

Advanced R&D Expertise

With 80+ patents, RMM leads in innovation. RMM developed peripheral heating retrofit technology and tri-arc structures to boost production efficiency and reduce resource waste.

Advanced Testing Assurance

Comprehensive testing with advanced equipment ensures high quality and reliable performance of corrugating rolls.

Advanced Manufacturing Techniques

RMM’s proprietary cryogenic treatment process significantly enhances the uniformity and stability of corrugating roll hardness, extending service lifespan.

One-Stop Service Solution

RMM offers a full range of services, including flute design and component pre-installation, to meet needs and boost efficiency while reducing costs.

Why Choose RMM?

Comprehensive Corrugating Roll Solutions

With over 30 years of experience, RMM is your reliable partner for lasting corrugating solutions. We offer full warranties, global 24/7 support, and efficient delivery options, ensuring high performance and customer satisfaction worldwide.

50000㎡ Factory

RMM operates the world's pioneering factory with a 50,000 square meter facility and a capacity to produce 3,000 pairs annually.

Trusted Certifications

RMM holds CE, DOSH, ASME, ISO 9001, ISO 14001, and ISO 45001 certifications, ensuring top quality and safety standards.

Supply Chain Assurance

RMM collaborates with suppliers to maintain stock and ensure prompt deliveries through a stable supply chain.

Global Support and 24/7 Service

RMM's service team provides 24/7 online support and international service points for reliable assistance.

Efficient Packaging Protection

RMM uses anti-rust oil, plastic film, and fumigated wooden crates for roll protection during transport.

Maintenance Guide Support

RMM provides detailed maintenance documentation for each roll, helping clients extend its service life.

We Drive You to Advanced Manufacturing with Innovative Patents

Our commitment to relentless innovation is showcased through our patents, empowering you with cutting-edge technology in corrugating roll manufacturing.

Common Questions and Answers

How many standard flute profiles do you offer?

We offer a variety of flute profiles, including K, A, C, V, B, W, E, and micro flutes such as F, N, O, and G, etc. at the same time, our TFP service can design special flute profiles to meet different production needs.

Can you produce D flute and T flute?

Yes, we can. The D flute, developed by BHS, has a profile height of 1.8–2.1 mm, while the T flute, from Tiruna, measures 1.47–2.07 mm—similar to our W flute, which ranges from 1.7–2.05 mm. Our TFP service covers all these flute types.

How do I choose the optimal flute combination?

We assess your specific production needs, such as better printing performance with E-flute, lower TUR (Take-Up Ratio), or better ECT, FCT, and BCT. Based on these factors, we help you design the most suitable flute combination.

What makes Dasong E-flute superior?

Dasong specializes in tungsten-coated E-flute rolls, utilizing advanced production processes to enhance cardboard performance, extend roll lifespan, and reduce costs. Our expertise in superfine flutes, including N and O flutes, sets new standards for high-precision corrugating.
